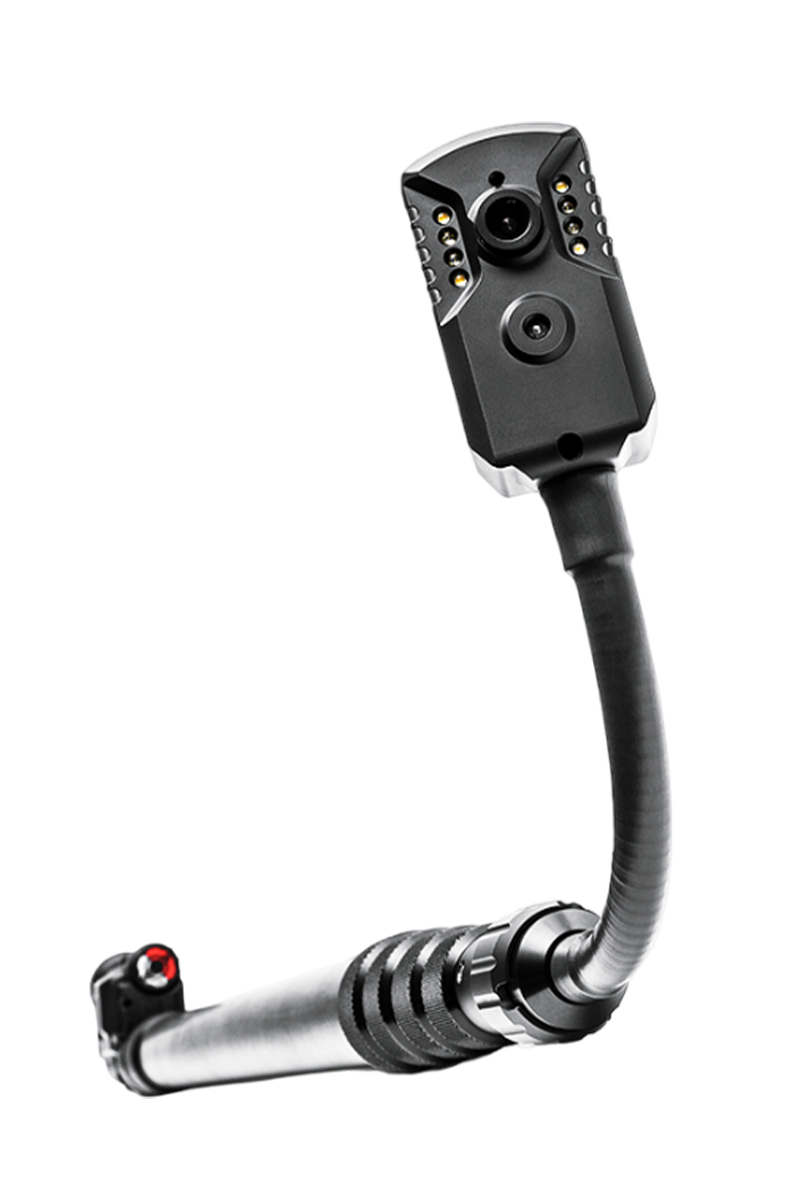

CORE Pole Camera

The CORE Pole Camera extends an operator's vision and tactical inspection capability with a telescoping HD pole camera that combines extreme low-light sensitivity with Thermal Fusion Technology for unsurpassed detail and definition. The camera attaches to a high-density graphite POLE Grip available in four lengths (8ft, 10ft, 17ft, or hinged 17ft) that locks at each extension and collapses down for fast deployment and stow. Video streams wirelessly to the CORE monitor over an AES-encrypted 5GHz channel, with an optional hardwire connection for RF-restricted environments.

1280x720p HD monochrome video fused with longwave infrared (LWIR) thermal imaging
Four high-intensity white and IR LEDs, 0-100% dimmable for visible and covert illumination
Telescoping graphite POLE Grip with locking sections — 8ft, 10ft, 17ft, or hinged 17ft

Specifications

Features

High-Definition 1280x720p monochrome CMOS sensor with extreme low-light sensitivity
Longwave infrared (LWIR) thermal imager for Thermal Fusion Technology
Four high-intensity white and IR LEDs, 0-100% dimmable
Telescoping graphite POLE Grip — 8ft, 10ft, 17ft, or hinged 17ft extended length
Locking pole sections collapse to 28" (8ft), 37" (10ft), 47" (17ft), or 35" (hinged 17ft) for stow
Camera head also compatible with the CORE Grip with built-in 1.0" AMOLED eyepiece
Omni-directional microphone for audio capture
MicroSD card video recording (32GB)
Backlit push buttons and graphical LCD for status info
Powered by three CR123 batteries

Performance

Wireless 5 GHz video transmission with WPA2-PSK authentication and AES encryption
Hardwire video option available for RF-restricted environments
Thermal Fusion blends HD CMOS with LWIR thermal for object definition that surpasses thermal-only imagers
Battery runtime approximately 2.5 hours on three CR123 cells
Subject to U.S. Export Administration Regulations (EAR)
Made in the USA
