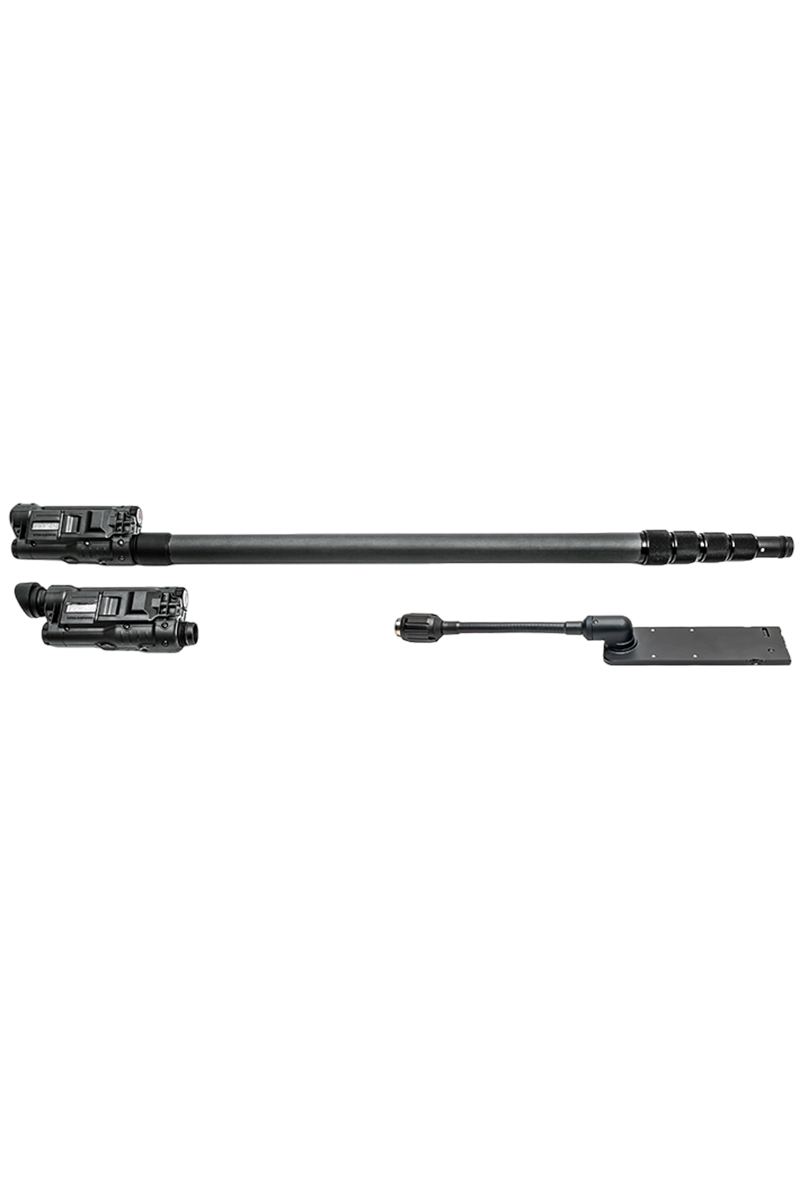

CORE Under Door Camera

The CORE Under Door Camera gives operators covert visual inspection into rooms behind closed doors. A wireless, digitally encrypted color CMOS sensor captures real-time video through an 8" long, 0.26" thick insertion panel that slides under doors with either the CORE Grip or POLE Grip for extended reach. Available in 1-camera (forward), 2-camera (forward + upward), or 4-camera (forward + upward + left + right) configurations, the CORE UDC is the workhorse pre-entry visual intelligence tool for SWAT, hostage rescue, and high-risk warrant service.

0.26" insertion panel slides under doors with the CORE Grip or POLE Grip
1-camera, 2-camera, or 4-camera configurations — quad provides forward, upward, left, and right views simultaneously
Adjustable high-intensity IR LED illumination for low- and no-light environments

Specifications

Features

0.26" insertion panel thickness, 8" insertion length
Color CMOS sensor with excellent low-light sensitivity
Available in 1-camera, 2-camera, or 4-camera configuration
2-camera = forward + upward views; 4-camera = forward + upward + left + right views
Adjustable high-intensity IR LED illumination, controllable on-camera or remotely via monitor
Attaches to 8ft / 10ft / 17ft POLE Grip or CORE Grip
Color eyepiece with 1.0" AMOLED display (when paired with CORE Grip) — no separate monitor required
Wireless 5 GHz transmission with WPA2-PSK / AES encryption
Hardwire video option for RF-restricted environments
Graphical LCD for status information, backlit push buttons
MicroSD card video recording (32GB)

Performance

Wireless 5 GHz video transmission with WPA2-PSK authentication and AES encryption
Hardwire video option available for RF-restricted environments
Quad-camera configuration eliminates dead zones with simultaneous 4-direction coverage
Compact form factor for rapid deployment and easy stow in tactical loadout
Subject to U.S. Export Administration Regulations (EAR)
Made in the USA
